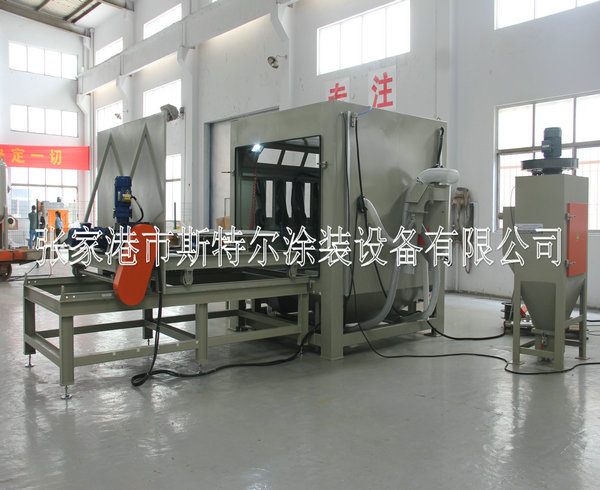

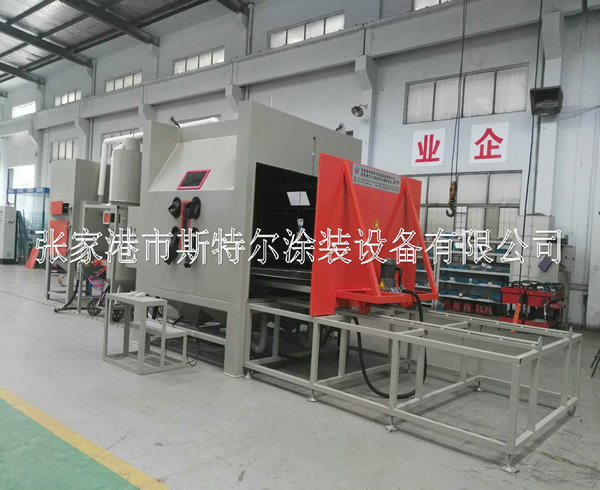

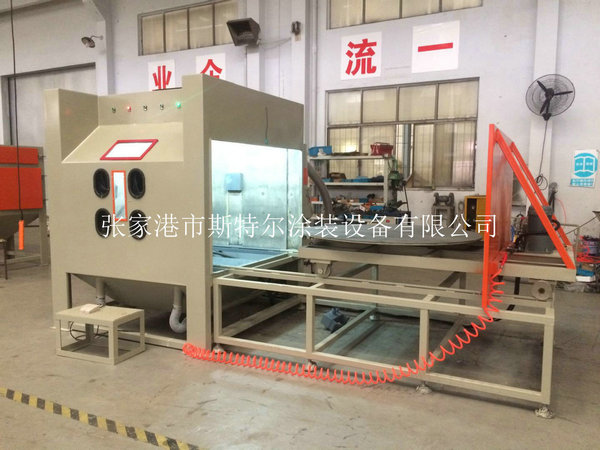

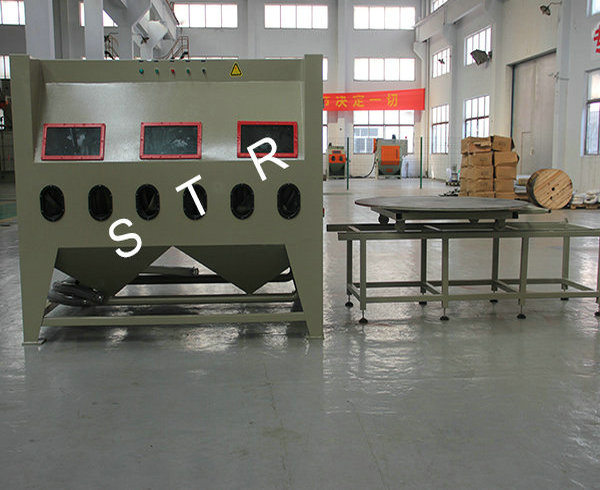

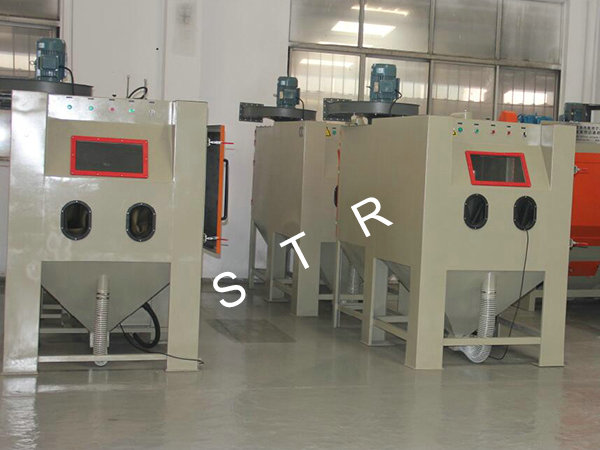

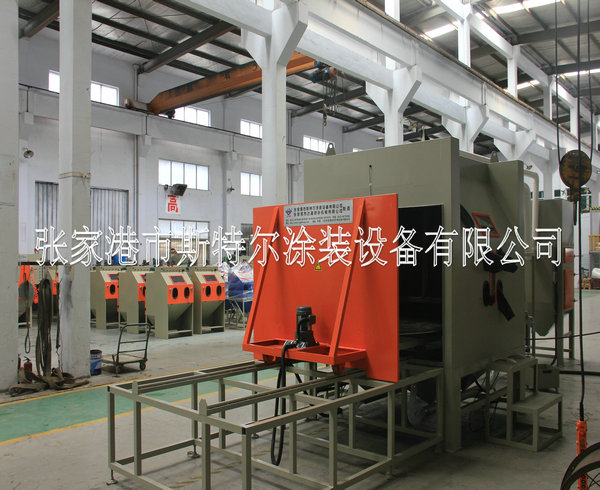

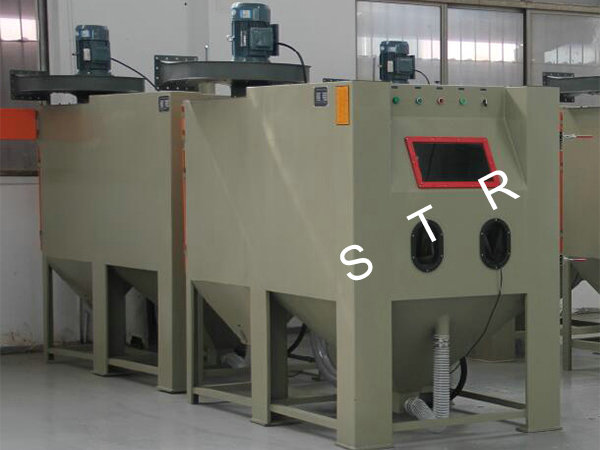

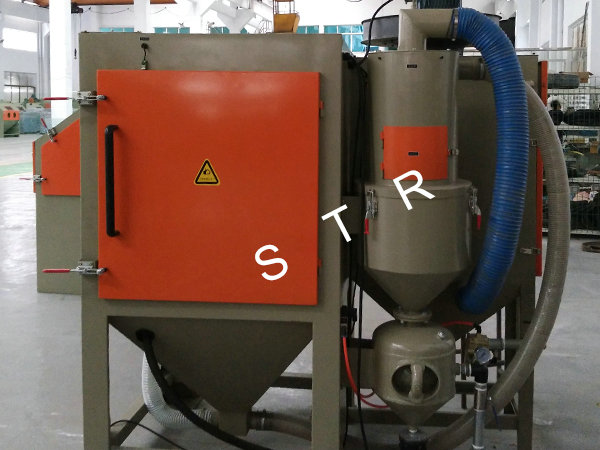

◆設備基本特征 Product features(請來瀏覽(lan)訪問(wen)有大量(liang)量(liang)事例像(xiang)片供決定性)
噴砂機主要用于電鍍、噴漆、噴涂等所有被覆蓋加工前噴砂處理;舊樣翻新清洗;金屬制品及塑膠、水晶、玻璃等表面痕跡消除,啞光霧面處理,使產品表面提升檔次;機加工零件微小毛刺去除;增加金屬件表面硬度,消除應力如彈簧、機加工刀具等;金屬制品及非金屬制品表面刻蝕圖案、文字及防滑處理,如大理石、印章、手柄防滑等。本機應用范圍:適用于大量中小型一般工件及高硬度工件的快速噴砂。如發動機配件、閥門、熱處理工件等。該機型設計新穎,結構科學合理,操作方便,加工性能優越;噴砂速度快,撞擊點深。
Features: Sandblasting machine is mainly used in electroplating, paint, coating area to-be-covered before piating; Old way of refurbished cleaning; Metal products and plastic, crystal, glass surface trace eliminate scattered, dumb, surface process to enhance the grade of the product's surface; Machining parts tiny burrs purify; Increase the metal surface hardness, eliminate stress such as spring, mechanical cutters, etc.; Metal and non-metai products surface etching pattern, writing and prevent slippery processing, such as marble, seals, and handle prevent slippery, etc. The machine is applied the range: applicable to small and medium-sized general of workpiece and high hardness workpieces quickly sandblasting. Such as engine fittings, valves, heat treatment workpiece, etc. This machine has novel, scientific design and reasonable structure, convenient operation, processing superior performance; Gush arenaceous speed, the impact point at deep.
◆使用依據 Applicable scope
電子器件(jian)五金配件(jian)類(lei),ABS塑(su)料材(cai)質,亞克(ke)力(li)板材(cai),黑色防靜(jing)電鑷子。特重型鏜孔、架(jia)建筑構件(jian)、不飽和樹脂等(deng)鏜孔或(huo)方法品噴砂。
Applicable scope: electronic hardware class, ABS plastic, acrylic, resin, workpiece or handicraft sandblasting
◆通常技術性能指標 Main technical parameters此參考使用主要(yao)與業務部門關聯
|
廣(guang)州POS機參數 Model |
STR-9070 |
STR-9080 |
STR-1010 |
STR-1212 |
|
做工作艙厚(hou)度 Internal size(mm) |
900×700×790 |
900×800×700 |
1000×1000×670 |
1180×1180×980 |
|
該機長(chang)寬(kuan)比 Complete machine size(mm) |
900×700×1780 |
950×850×1720 |
1000×1000×2100 |
1200×1200×2580 |
|
排(pai)塵(chen)箱尺寸大小 Dedust box sizes(mm) |
600×600×1680 |
600×600×1680 |
600×600×1680 |
800×800×1780 |
|
開(kai)關電源 Power |
220V 50Hz |
220V 50Hz |
220V 50Hz |
220V 50Hz |
|
機器人燈飾照指路明(ming)燈 Machine floodlight |
220V 20W 節約(yue)燈 |
220V 20W 低碳燈 |
220V 20W 低碳燈 |
220V 20W 發展節能環保燈 |
|
脫離器減速機 Separator motor |
220V 50Hz 0.55-3KW |
220V 50Hz 0.55 |
220V 50Hz 0.55-3KW |
220V 50Hz 0.55-3KW |
|
脫離器風口尺寸 Separator air volume |
8.5m3/min |
8.5m3/min |
8.5m3/min |
8.5m3/min |
|
減小的空(kong)氣源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
機氣稱(cheng)重 Weight |
380kg |
380kg |
400kg |
380kg |
