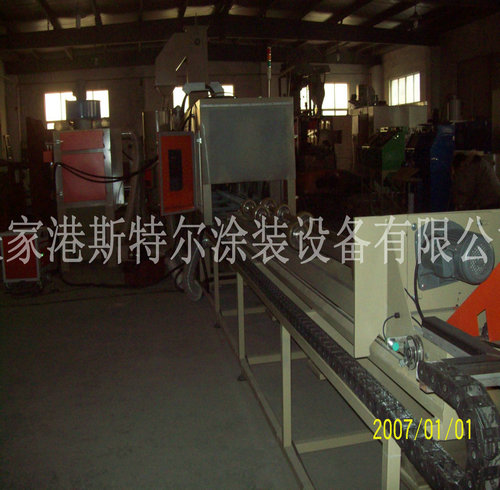

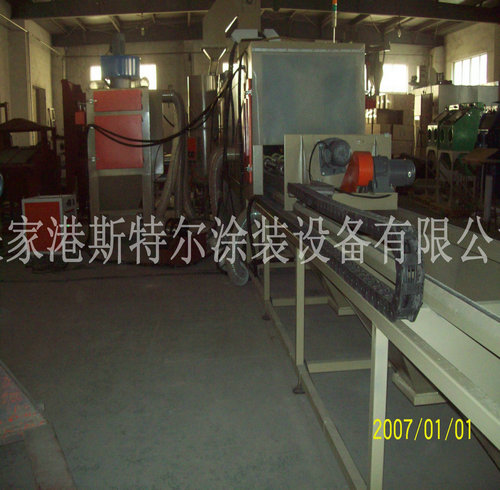

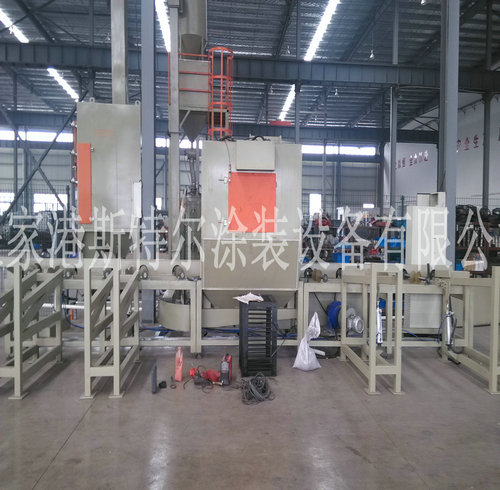

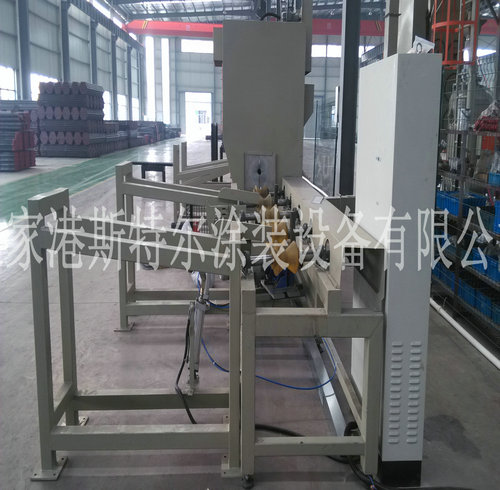

管道外壁自動噴砂機
◆使用條件 Applicable scope
管類零件,如:螺旋鋼(gang)管、園鋼(gang)、拉杠、螺旋軸(zhou)、大(da)形柱體、圓(yuan)罐類、柱體型類件;所采用(yong)雙槍(qiang)(qiang)(可按(an)追求(qiu)多槍(qiang)(qiang))及漩風式(shi)濾(lv)塵器和光電(dian)技術感應(ying)式(shi)功效(xiao),增加了(le)分娩學(xue)習效(xiao)率(lv)及小臭(chou)的變少了(le)維修培訓率(lv)。 (此型號規格需預訂)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆關鍵技術設備主要參數 Main technical parameters
|
儀器規格 Model |
STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
|
工作任務艙的尺寸 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
|
整套裝置長寬高 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
|
壓縮成氧氣源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
電源模塊 Power |
220v 50Hz |
220v 50Hz |
|
直流變頻空調電機的調速器器 Governor |
250W×2 |
250W×2 |
|
分離器同步電機 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
|
破乳器功率 Air separator |
35m3/min |
35m3/min |
|
電腦凈重 Machine weight |
900kg |
900kg |
